Rack-Mounted Power Systems

The Green Cubes family of DC power systems include the Aspiro, Guardian, and Sageon. These DC power systems are available in cabinetized, dual voltage, hybrid, or rack-mountable format with capacities ranging from 45A to 6750A.

Aspiro DC power systems are 1RU and 2RU rack-mount from 45A to 90A at -48V. Guardian products are 3RU, 5RU, 6RU, and 10RU rack-mount systems, as well as floor standing cabinet configurations from 200A to 6750A at -48V. Sageon Micro and Sageon II solutions are rack-mounted expandable systems rated from 200A to 600A available in both -48V and +24V configurations. Sageon III is a floor-standing cabinet system rated at 600A or 1200A at -48VDC.

Did you find the right DC power system for your application?  Get a free quote today! Curious about which rectifier or converter is right for your application? Contact us now for immediate assistance!

Next Event

GSE Expo – Las Vegas Sep 2023
26 Sep 2023

We’re exhibiting at the International GSE Expo 2023, an event that provides unique access to a...

Read More

Products

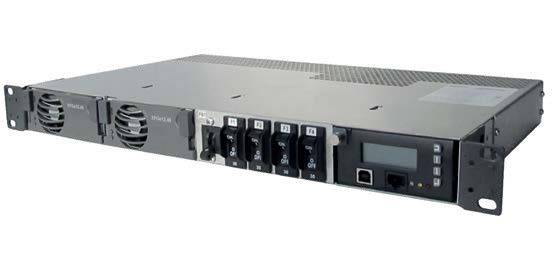

Aspiro 1U

Features and Options
  • 95% Efficiency Rectifiers
  • 45A / 2.4kW Capacity
  • Intelligent Battery Management
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 4 Form-C Relay Alarms
  • 4 Load Breakers
  • 1 Battery Breaker
  • LCD Display/Touchpad

Aspiro 2U

Features and Options
  • >95% Efficiency Rectifiers
  • 60A / 3.2kW Load Capacity
  • Full Front Access
  • Intelligent Battery Management
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 4 Form-C Relay Alarms
  • 8 Load & 2 Battery Breakers
  • LCD Display/Touchpad
  • Easy Installation

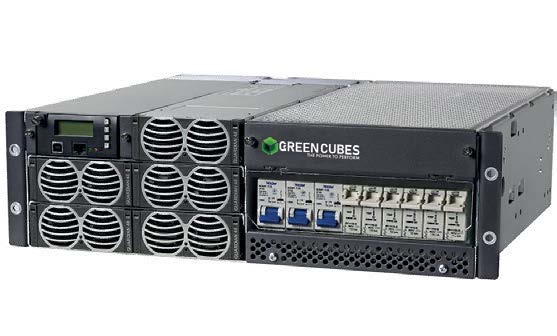

Guardian 3U

Features and Options
  • >96% Efficiency Rectifiers
  • 300A / 14.4kW Total Capacity
  • Remote Monitoring & Control
  • Intelligent Battery Management
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • Up to 10 Form-C Relay Alarms
  • Up to 13 Load Breakers
  • Up to 3 Battery Breakers
  • LCD Display/Touchpad
  • Easy Installation

Guardian 5-6U MS31

Features and Options
  • >96% Efficiency Rectifiers
  • 480A / 23.2kW Load Capacity
  • Remote Monitoring & Control
  • Intelligent Battery Management
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • Up to 10 Form-C Relay Alarms
  • Up to 20 Load Breakers
  • Up to 6 Battery Breakers
  • LCD Display/Touchpad
  • Easy Installation

Guardian 5-7U M38

Features and Options
  • >96% Efficiency Rectifiers
  • 60A to 600A (N+1) Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • Up to 20 Load Circuits
  • 600A LVBD Standard
  • LCD Display/Touchpad
  • Easy Installation

Guardian 6-7U M44

Features and Options
  • Rectifiers or Solar Converters
  • 60A to 700A Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 4 or 10 Form-C Relay Alarms
  • Up to 23 Load Breakers
  • Up to 6 Battery Breakers
  • LCD Display & Keypad
  • Easy Installation

Guardian Hybrid MS31H

Features and Options
  • High efficiency rectifiers and converters
  • Hybrid Bus Architecture
  • Flexible, Modular, Integrated solutions
  • Grid connect, off-grid and renewable ready
  • Maximum Power Point Tracking

Guardian Hybrid M44H

Features and Options
  • Fully Hybrid Solution
  • 60A to 700A Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 4 or 10 Form-C Relay Alarms
  • Up to 23 Load Breakers
  • Up to 6 Battery Breakers
  • LCD Display/Keypad
  • Easy Installation

Guardian Bulk 7U

Features and Options
  • >96% Efficiency Rectifiers
  • 600A (N+1) Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation

Guardian Bulk 10U

Features and Options
  • >96% Efficiency Rectifiers
  • 1200A (N+1) Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation

Sageon Micro

Features and Options
  • High Power Density
  • 200A Capacity
  • 24VDC or 48VDC
  • 2400W Hot-Swap Rectifiers
  • Battery Testing
  • Battery Monitoring
  • Remote Monitoring & Control
  • Programmable Battery Recharge
  • Field Replaceable Controller
  • LCD Display/Touchpad

Sageon II

Features and Options
  • High Power Density
  • 400A or 600A Capacity
  • 24VDC or 48VDC
  • 2400W Hot-Swap Rectifiers
  • Battery Testing
  • Battery Monitoring
  • Remote Monitoring & Control
  • Programmable Battery Recharge
  • Field Replaceable Controller
  • LCD Display/Touchpad

Sageon II PMD

Features and Options
  • TRUE FULL Front Access
  • 200A, 400A or 600A Capacity
  • 20-Way or 40-Way Breaker Distribution
  • 2400W Hot-Swap Rectifiers
  • Battery Testing
  • Battery Monitoring
  • Remote Monitoring & Control
  • Programmable Battery Recharge
  • Field Replaceable Controller
  • LCD Display/Touchpad

Sageon III

Features and Options
  • TRUE FULL Front Access
  • 600A or 1200A Capacity
  • 60-Way load Distribution
  • 2400W Hot-Swap Rectifiers
  • Battery Testing
  • Battery Monitoring
  • Remote Monitoring & Control
  • Programmable Battery Recharge
  • Field Replaceable Controller
  • LCD Display/Touchpad

Sageon Tower RFK1

Features and Options
  • Replaces Power Section for
  • Legacy Sageon Tower Systems
  • >96% Efficiency Rectifiers
  • 375A to 1375A N+1 Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation

Guardian AGM Retrofit Kit

Features and Options
  • Replaces Power Section for Legacy C&D AGM Systems
  • >96% Efficiency Rectifiers
  • 400A Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation

Guardian RFK 2

Features and Options
  • Replaces Power Section for Legacy Systems
  • >96% Efficiency Rectifiers
  • 400A Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation

Sageon SPMD/SPM RFK3

Features and Options
  • Replaces Power Section for
  • Legacy Sageon SPMD/SPM Systems
  • >96% Efficiency Rectifiers
  • 375A N+1 Capacity
  • Remote Monitoring & Control
  • Field Replaceable Controller
  • Ethernet Comm. with SNMPv3
  • 3 LED Alarm/Status Indicators
  • 10 Form-C Relay Alarms
  • LCD Display/Touchpad
  • Easy Installation
